Paslanmaz çelik içi boş milli pozisyon göstergesi

geri

Ürünler
- Kullanım parçaları | Norm birimleri
  - El çarkları, krank kolları, pozisyon göstergeleri
    - Paslanmaz çelik içi boş milli pozisyon göstergesi

Ürün açıklaması/Ürün resimleri

AçıklamaMalzeme:Poliamid 6 gövde.
Paslanmaz çelik içi boş mil.
Plastik kontrol camı.
Dişli başsız vida, paslanmaz çelik.Model:Gövde: darbelere karşı dayanıklı.
İçi boş mil ve yalın dişli başsız vida.
Rakam tekerleri: siyah, rakamlar: beyaz.Bilgi:Pozisyon göstergeleri ayarlanmış ölçüm değerlerinin, bir bakışta doğrudan okunmasını mümkün kılar.
İş mili devri başına gösterge değeri (ilgili iş mili adımı) seçilebilir, böylece farklı gösterge değerleri bir aktarma dişlisi tarafından gerçekleştirilir.
Pozisyon göstergeleri, net bir ekrana ve hassas okumaya sahip küçük tasarımlarıyla ön plana çıkar. Ekstra küçük mil mesafeleri ve küçük mil çapları için uygundur. Bunlar karşı taraftaki bir deliğe yerleştirilen bir tork desteğine sahiptir.Teknik veriler:– 4 onluktan oluşan sayaç mekanizması ve hassas okuma özelliği
– Rakam yüksekliği yakl. 6 mm
– İçi boş millerin çapı 14 H7 mm
– 80 °C'ye kadar ısılara karşı dayanıklı
– yağ ve çözücü maddelere karşı dayanıklıTalep üzerine:– Sayaç mekanizması kapağı: Mineral cam
– Eksenel conta (toz geçirmez)
– Titreşim koruması

İndirBurada bilgiler toplu halde PDF olarak sunulur:

CAD verileri mi arıyorsunuz? Bunları doğrudan ürün tablosunda bulabilirsiniz.

Datasheet K2107 Paslanmaz çelik içi boş milli pozisyon göstergesi

266 kB

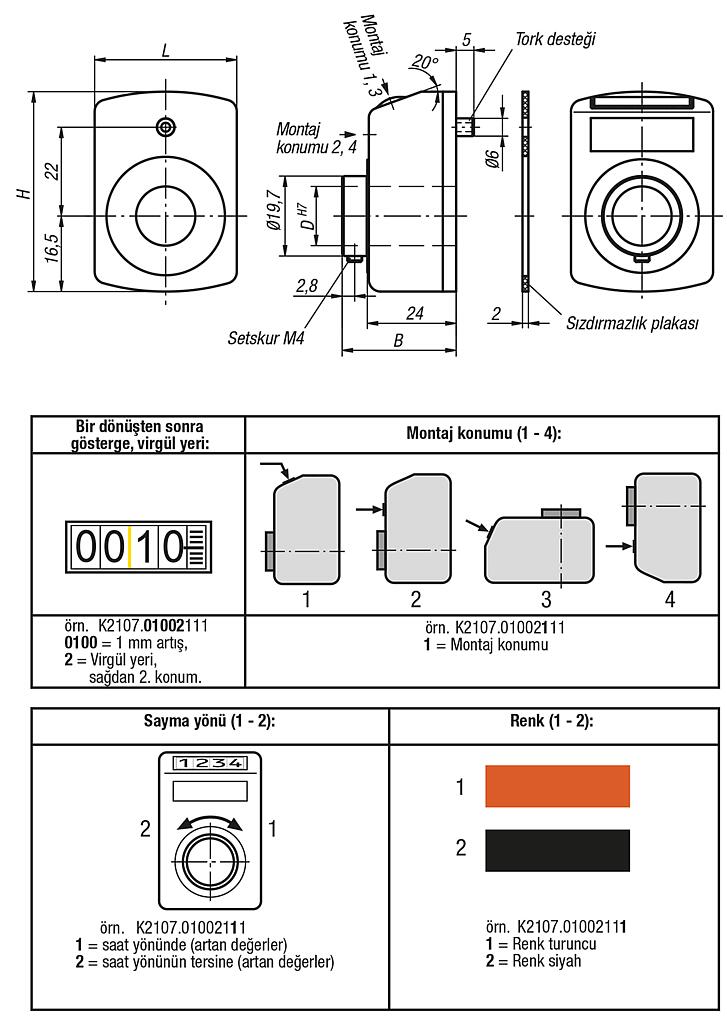

Çizimler

Ürün seçimi/filtresi

Sipariş numarası	Ana gövde rengi	B	D	H	L	Artma	Virgül hanesi	maks. devir sayısı Dev/dak	Montaj pozisyonu	Sayma yönü	Bir tur sonrası gösterge	Fiyat
K2107.01001111	sade turunç RAL 2004	31	14	47	33	1	1	500	1	1	001,0	75,71 €
K2107.01002111	sade turunç RAL 2004	31	14	47	33	1	2	500	1	1	00,10	75,71 €
K2107.01001121	sade turunç RAL 2004	31	14	47	33	1	1	500	1	2	001,0	75,71 €
K2107.01002121	sade turunç RAL 2004	31	14	47	33	1	2	500	1	2	00,10	75,71 €
K2107.01001211	sade turunç RAL 2004	31	14	47	33	1	1	500	2	1	001,0	75,71 €
K2107.01002211	sade turunç RAL 2004	31	14	47	33	1	2	500	2	1	00,10	75,71 €
K2107.01001221	sade turunç RAL 2004	31	14	47	33	1	1	500	2	2	001,0	75,71 €
K2107.01002221	sade turunç RAL 2004	31	14	47	33	1	2	500	2	2	00,10	75,71 €
K2107.01001311	sade turunç RAL 2004	31	14	47	33	1	1	500	3	1	001,0	75,71 €
K2107.01002311	sade turunç RAL 2004	31	14	47	33	1	2	500	3	1	00,10	75,71 €
K2107.01001321	sade turunç RAL 2004	31	14	47	33	1	1	500	3	2	001,0	75,71 €
K2107.01002321	sade turunç RAL 2004	31	14	47	33	1	2	500	3	2	00,10	75,71 €
K2107.01001411	sade turunç RAL 2004	31	14	47	33	1	1	500	4	1	001,0	75,71 €
K2107.01002411	sade turunç RAL 2004	31	14	47	33	1	2	500	4	1	00,10	75,71 €
K2107.01001421	sade turunç RAL 2004	31	14	47	33	1	1	500	4	2	001,0	75,71 €
K2107.01002421	sade turunç RAL 2004	31	14	47	33	1	2	500	4	2	00,10	75,71 €
K2107.01251111	sade turunç RAL 2004	31	14	47	33	1,25	1	500	1	1	001,2/5	75,71 €
K2107.01251121	sade turunç RAL 2004	31	14	47	33	1,25	1	500	1	2	001,2/5	75,71 €
K2107.01251211	sade turunç RAL 2004	31	14	47	33	1,25	1	500	2	1	001,2/5	75,71 €
K2107.01251221	sade turunç RAL 2004	31	14	47	33	1,25	1	500	2	2	001,2/5	75,71 €
K2107.01251311	sade turunç RAL 2004	31	14	47	33	1,25	1	500	3	1	001,2/5	75,71 €
K2107.01251321	sade turunç RAL 2004	31	14	47	33	1,25	1	500	3	2	001,2/5	75,71 €
K2107.01251411	sade turunç RAL 2004	31	14	47	33	1,25	1	500	4	1	001,2/5	75,71 €
K2107.01251421	sade turunç RAL 2004	31	14	47	33	1,25	1	500	4	2	001,2/5	75,71 €
K2107.01501111	sade turunç RAL 2004	31	14	47	33	1,5	1	500	1	1	001,5	75,71 €
K2107.01501121	sade turunç RAL 2004	31	14	47	33	1,5	1	500	1	2	001,5	75,71 €
K2107.01501211	sade turunç RAL 2004	31	14	47	33	1,5	1	500	2	1	001,5	75,71 €
K2107.01501221	sade turunç RAL 2004	31	14	47	33	1,5	1	500	2	2	001,5	75,71 €
K2107.01501311	sade turunç RAL 2004	31	14	47	33	1,5	1	500	3	1	001,5	75,71 €
K2107.01501321	sade turunç RAL 2004	31	14	47	33	1,5	1	500	3	2	001,5	75,71 €
K2107.01501411	sade turunç RAL 2004	31	14	47	33	1,5	1	500	4	1	001,5	75,71 €
K2107.01501421	sade turunç RAL 2004	31	14	47	33	1,5	1	500	4	2	001,5	75,71 €
K2107.02001111	sade turunç RAL 2004	31	14	47	33	2	1	500	1	1	002,0	75,71 €
K2107.02001121	sade turunç RAL 2004	31	14	47	33	2	1	500	1	2	002,0	75,71 €
K2107.02001211	sade turunç RAL 2004	31	14	47	33	2	1	500	2	1	002,0	75,71 €
K2107.02001221	sade turunç RAL 2004	31	14	47	33	2	1	500	2	2	002,0	75,71 €
K2107.02001311	sade turunç RAL 2004	31	14	47	33	2	1	500	3	1	002,0	75,71 €
K2107.02001321	sade turunç RAL 2004	31	14	47	33	2	1	500	3	2	002,0	75,71 €
K2107.02001411	sade turunç RAL 2004	31	14	47	33	2	1	500	4	1	002,0	75,71 €
K2107.02001421	sade turunç RAL 2004	31	14	47	33	2	1	500	4	2	002,0	75,71 €
K2107.02501111	sade turunç RAL 2004	31	14	47	33	2,5	1	500	1	1	002,5	75,71 €
K2107.02501121	sade turunç RAL 2004	31	14	47	33	2,5	1	500	1	2	002,5	75,71 €
K2107.02501211	sade turunç RAL 2004	31	14	47	33	2,5	1	500	2	1	002,5	75,71 €
K2107.02501221	sade turunç RAL 2004	31	14	47	33	2,5	1	500	2	2	002,5	75,71 €
K2107.02501311	sade turunç RAL 2004	31	14	47	33	2,5	1	500	3	1	002,5	75,71 €
K2107.02501321	sade turunç RAL 2004	31	14	47	33	2,5	1	500	3	2	002,5	75,71 €
K2107.02501411	sade turunç RAL 2004	31	14	47	33	2,5	1	500	4	1	002,5	75,71 €
K2107.02501421	sade turunç RAL 2004	31	14	47	33	2,5	1	500	4	2	002,5	75,71 €
K2107.03001111	sade turunç RAL 2004	31	14	47	33	3	1	500	1	1	003,0	75,71 €
K2107.03001121	sade turunç RAL 2004	31	14	47	33	3	1	500	1	2	003,0	75,71 €
K2107.03001211	sade turunç RAL 2004	31	14	47	33	3	1	500	2	1	003,0	75,71 €
K2107.03001221	sade turunç RAL 2004	31	14	47	33	3	1	500	2	2	003,0	75,71 €
K2107.03001311	sade turunç RAL 2004	31	14	47	33	3	1	500	3	1	003,0	75,71 €
K2107.03001321	sade turunç RAL 2004	31	14	47	33	3	1	500	3	2	003,0	75,71 €
K2107.03001411	sade turunç RAL 2004	31	14	47	33	3	1	500	4	1	003,0	75,71 €
K2107.03001421	sade turunç RAL 2004	31	14	47	33	3	1	500	4	2	003,0	75,71 €
K2107.04001111	sade turunç RAL 2004	31	14	47	33	4	1	375	1	1	004,0	75,71 €
K2107.04001121	sade turunç RAL 2004	31	14	47	33	4	1	375	1	2	004,0	75,71 €
K2107.04001211	sade turunç RAL 2004	31	14	47	33	4	1	375	2	1	004,0	75,71 €
K2107.04001221	sade turunç RAL 2004	31	14	47	33	4	1	375	2	2	004,0	75,71 €
K2107.04001311	sade turunç RAL 2004	31	14	47	33	4	1	375	3	1	004,0	75,71 €
K2107.04001321	sade turunç RAL 2004	31	14	47	33	4	1	375	3	2	004,0	75,71 €
K2107.04001411	sade turunç RAL 2004	31	14	47	33	4	1	375	4	1	004,0	75,71 €
K2107.04001421	sade turunç RAL 2004	31	14	47	33	4	1	375	4	2	004,0	75,71 €
K2107.05001111	sade turunç RAL 2004	31	14	47	33	5	1	300	1	1	005,0	75,71 €
K2107.05001121	sade turunç RAL 2004	31	14	47	33	5	1	300	1	2	005,0	75,71 €
K2107.05001211	sade turunç RAL 2004	31	14	47	33	5	1	300	2	1	005,0	75,71 €
K2107.05001221	sade turunç RAL 2004	31	14	47	33	5	1	300	2	2	005,0	75,71 €
K2107.05001311	sade turunç RAL 2004	31	14	47	33	5	1	300	3	1	005,0	75,71 €
K2107.05001321	sade turunç RAL 2004	31	14	47	33	5	1	300	3	2	005,0	75,71 €
K2107.05001411	sade turunç RAL 2004	31	14	47	33	5	1	300	4	1	005,0	75,71 €
K2107.05001421	sade turunç RAL 2004	31	14	47	33	5	1	300	4	2	005,0	75,71 €
K2107.06001111	sade turunç RAL 2004	31	14	47	33	6	1	250	1	1	006,0	75,71 €
K2107.06001121	sade turunç RAL 2004	31	14	47	33	6	1	250	1	2	006,0	75,71 €
K2107.06001211	sade turunç RAL 2004	31	14	47	33	6	1	250	2	1	006,0	75,71 €
K2107.06001221	sade turunç RAL 2004	31	14	47	33	6	1	250	2	2	006,0	75,71 €
K2107.06001311	sade turunç RAL 2004	31	14	47	33	6	1	250	3	1	006,0	75,71 €
K2107.06001321	sade turunç RAL 2004	31	14	47	33	6	1	250	3	2	006,0	75,71 €
K2107.06001411	sade turunç RAL 2004	31	14	47	33	6	1	250	4	1	006,0	75,71 €
K2107.06001421	sade turunç RAL 2004	31	14	47	33	6	1	250	4	2	006,0	75,71 €
K2107.08001111	sade turunç RAL 2004	31	14	47	33	8	1	180	1	1	008,0	75,71 €
K2107.08001121	sade turunç RAL 2004	31	14	47	33	8	1	180	1	2	008,0	75,71 €
K2107.08001211	sade turunç RAL 2004	31	14	47	33	8	1	180	2	1	008,0	75,71 €
K2107.08001221	sade turunç RAL 2004	31	14	47	33	8	1	180	2	2	008,0	75,71 €
K2107.08001311	sade turunç RAL 2004	31	14	47	33	8	1	180	3	1	008,0	75,71 €
K2107.08001321	sade turunç RAL 2004	31	14	47	33	8	1	180	3	2	008,0	75,71 €
K2107.08001411	sade turunç RAL 2004	31	14	47	33	8	1	180	4	1	008,0	75,71 €
K2107.08001421	sade turunç RAL 2004	31	14	47	33	8	1	180	4	2	008,0	75,71 €
K2107.10001111	sade turunç RAL 2004	31	14	47	33	10	1	150	1	1	010,0	75,71 €
K2107.10001121	sade turunç RAL 2004	31	14	47	33	10	1	150	1	2	010,0	75,71 €
K2107.10001211	sade turunç RAL 2004	31	14	47	33	10	1	150	2	1	010,0	75,71 €
K2107.10001221	sade turunç RAL 2004	31	14	47	33	10	1	150	2	2	010,0	75,71 €
K2107.10001311	sade turunç RAL 2004	31	14	47	33	10	1	150	3	1	010,0	75,71 €
K2107.10001321	sade turunç RAL 2004	31	14	47	33	10	1	150	3	2	010,0	75,71 €
K2107.10001411	sade turunç RAL 2004	31	14	47	33	10	1	150	4	1	010,0	75,71 €
K2107.10001421	sade turunç RAL 2004	31	14	47	33	10	1	150	4	2	010,0	75,71 €
K2107.01001112	siyah	31	14	47	33	1	1	500	1	1	001,0	75,71 €
K2107.01002112	siyah	31	14	47	33	1	2	500	1	1	00,10	75,71 €
K2107.01001122	siyah	31	14	47	33	1	1	500	1	2	001,0	75,71 €
K2107.01002122	siyah	31	14	47	33	1	2	500	1	2	00,10	75,71 €
K2107.01001212	siyah	31	14	47	33	1	1	500	2	1	001,0	75,71 €
K2107.01002212	siyah	31	14	47	33	1	2	500	2	1	00,10	75,71 €
K2107.01001222	siyah	31	14	47	33	1	1	500	2	2	001,0	75,71 €
K2107.01002222	siyah	31	14	47	33	1	2	500	2	2	00,10	75,71 €
K2107.01001312	siyah	31	14	47	33	1	1	500	3	1	001,0	75,71 €
K2107.01002312	siyah	31	14	47	33	1	2	500	3	1	00,10	75,71 €
K2107.01001322	siyah	31	14	47	33	1	1	500	3	2	001,0	75,71 €
K2107.01002322	siyah	31	14	47	33	1	2	500	3	2	00,10	75,71 €
K2107.01001412	siyah	31	14	47	33	1	1	500	4	1	001,0	75,71 €
K2107.01002412	siyah	31	14	47	33	1	2	500	4	1	00,10	75,71 €
K2107.01001422	siyah	31	14	47	33	1	1	500	4	2	001,0	75,71 €
K2107.01002422	siyah	31	14	47	33	1	2	500	4	2	00,10	75,71 €
K2107.01251112	siyah	31	14	47	33	1,25	1	500	1	1	001,2/5	75,71 €
K2107.01251122	siyah	31	14	47	33	1,25	1	500	1	2	001,2/5	75,71 €
K2107.01251212	siyah	31	14	47	33	1,25	1	500	2	1	001,2/5	75,71 €
K2107.01251222	siyah	31	14	47	33	1,25	1	500	2	2	001,2/5	75,71 €
K2107.01251312	siyah	31	14	47	33	1,25	1	500	3	1	001,2/5	75,71 €
K2107.01251322	siyah	31	14	47	33	1,25	1	500	3	2	001,2/5	75,71 €
K2107.01251412	siyah	31	14	47	33	1,25	1	500	4	1	001,2/5	75,71 €
K2107.01251422	siyah	31	14	47	33	1,25	1	500	4	2	001,2/5	75,71 €
K2107.01501112	siyah	31	14	47	33	1,5	1	500	1	1	001,5	75,71 €
K2107.01501122	siyah	31	14	47	33	1,5	1	500	1	2	001,5	75,71 €
K2107.01501212	siyah	31	14	47	33	1,5	1	500	2	1	001,5	75,71 €
K2107.01501222	siyah	31	14	47	33	1,5	1	500	2	2	001,5	75,71 €
K2107.01501312	siyah	31	14	47	33	1,5	1	500	3	1	001,5	75,71 €
K2107.01501322	siyah	31	14	47	33	1,5	1	500	3	2	001,5	75,71 €
K2107.01501412	siyah	31	14	47	33	1,5	1	500	4	1	001,5	75,71 €
K2107.01501422	siyah	31	14	47	33	1,5	1	500	4	2	001,5	75,71 €
K2107.02001112	siyah	31	14	47	33	2	1	500	1	1	002,0	75,71 €
K2107.02001122	siyah	31	14	47	33	2	1	500	1	2	002,0	75,71 €
K2107.02001212	siyah	31	14	47	33	2	1	500	2	1	002,0	75,71 €
K2107.02001222	siyah	31	14	47	33	2	1	500	2	2	002,0	75,71 €
K2107.02001312	siyah	31	14	47	33	2	1	500	3	1	002,0	75,71 €
K2107.02001322	siyah	31	14	47	33	2	1	500	3	2	002,0	75,71 €
K2107.02001412	siyah	31	14	47	33	2	1	500	4	1	002,0	75,71 €
K2107.02001422	siyah	31	14	47	33	2	1	500	4	2	002,0	75,71 €
K2107.02501112	siyah	31	14	47	33	2,5	1	500	1	1	002,5	75,71 €
K2107.02501122	siyah	31	14	47	33	2,5	1	500	1	2	002,5	75,71 €
K2107.02501212	siyah	31	14	47	33	2,5	1	500	2	1	002,5	75,71 €
K2107.02501222	siyah	31	14	47	33	2,5	1	500	2	2	002,5	75,71 €
K2107.02501312	siyah	31	14	47	33	2,5	1	500	3	1	002,5	75,71 €
K2107.02501322	siyah	31	14	47	33	2,5	1	500	3	2	002,5	75,71 €
K2107.02501412	siyah	31	14	47	33	2,5	1	500	4	1	002,5	75,71 €
K2107.02501422	siyah	31	14	47	33	2,5	1	500	4	2	002,5	75,71 €
K2107.03001112	siyah	31	14	47	33	3	1	500	1	1	003,0	75,71 €
K2107.03001122	siyah	31	14	47	33	3	1	500	1	2	003,0	75,71 €
K2107.03001212	siyah	31	14	47	33	3	1	500	2	1	003,0	75,71 €
K2107.03001222	siyah	31	14	47	33	3	1	500	2	2	003,0	75,71 €
K2107.03001312	siyah	31	14	47	33	3	1	500	3	1	003,0	75,71 €
K2107.03001322	siyah	31	14	47	33	3	1	500	3	2	003,0	75,71 €
K2107.03001412	siyah	31	14	47	33	3	1	500	4	1	003,0	75,71 €
K2107.03001422	siyah	31	14	47	33	3	1	500	4	2	003,0	75,71 €
K2107.04001112	siyah	31	14	47	33	4	1	375	1	1	004,0	75,71 €
K2107.04001122	siyah	31	14	47	33	4	1	375	1	2	004,0	75,71 €
K2107.04001212	siyah	31	14	47	33	4	1	375	2	1	004,0	75,71 €
K2107.04001222	siyah	31	14	47	33	4	1	375	2	2	004,0	75,71 €
K2107.04001312	siyah	31	14	47	33	4	1	375	3	1	004,0	75,71 €
K2107.04001322	siyah	31	14	47	33	4	1	375	3	2	004,0	75,71 €
K2107.04001412	siyah	31	14	47	33	4	1	375	4	1	004,0	75,71 €
K2107.04001422	siyah	31	14	47	33	4	1	375	4	2	004,0	75,71 €
K2107.05001112	siyah	31	14	47	33	5	1	300	1	1	005,0	75,71 €
K2107.05001122	siyah	31	14	47	33	5	1	300	1	2	005,0	75,71 €
K2107.05001212	siyah	31	14	47	33	5	1	300	2	1	005,0	75,71 €
K2107.05001222	siyah	31	14	47	33	5	1	300	2	2	005,0	75,71 €
K2107.05001312	siyah	31	14	47	33	5	1	300	3	1	005,0	75,71 €
K2107.05001322	siyah	31	14	47	33	5	1	300	3	2	005,0	75,71 €
K2107.05001412	siyah	31	14	47	33	5	1	300	4	1	005,0	75,71 €
K2107.05001422	siyah	31	14	47	33	5	1	300	4	2	005,0	75,71 €
K2107.06001112	siyah	31	14	47	33	6	1	250	1	1	006,0	75,71 €
K2107.06001122	siyah	31	14	47	33	6	1	250	1	2	006,0	75,71 €
K2107.06001212	siyah	31	14	47	33	6	1	250	2	1	006,0	75,71 €
K2107.06001222	siyah	31	14	47	33	6	1	250	2	2	006,0	75,71 €
K2107.06001312	siyah	31	14	47	33	6	1	250	3	1	006,0	75,71 €
K2107.06001322	siyah	31	14	47	33	6	1	250	3	2	006,0	75,71 €
K2107.06001412	siyah	31	14	47	33	6	1	250	4	1	006,0	75,71 €
K2107.06001422	siyah	31	14	47	33	6	1	250	4	2	006,0	75,71 €
K2107.08001112	siyah	31	14	47	33	8	1	180	1	1	008,0	75,71 €
K2107.08001122	siyah	31	14	47	33	8	1	180	1	2	008,0	75,71 €
K2107.08001212	siyah	31	14	47	33	8	1	180	2	1	008,0	75,71 €
K2107.08001222	siyah	31	14	47	33	8	1	180	2	2	008,0	75,71 €
K2107.08001312	siyah	31	14	47	33	8	1	180	3	1	008,0	75,71 €
K2107.08001322	siyah	31	14	47	33	8	1	180	3	2	008,0	75,71 €
K2107.08001412	siyah	31	14	47	33	8	1	180	4	1	008,0	75,71 €
K2107.08001422	siyah	31	14	47	33	8	1	180	4	2	008,0	75,71 €
K2107.10001112	siyah	31	14	47	33	10	1	150	1	1	010,0	75,71 €
K2107.10001122	siyah	31	14	47	33	10	1	150	1	2	010,0	75,71 €
K2107.10001212	siyah	31	14	47	33	10	1	150	2	1	010,0	75,71 €
K2107.10001222	siyah	31	14	47	33	10	1	150	2	2	010,0	75,71 €
K2107.10001312	siyah	31	14	47	33	10	1	150	3	1	010,0	75,71 €
K2107.10001322	siyah	31	14	47	33	10	1	150	3	2	010,0	75,71 €
K2107.10001412	siyah	31	14	47	33	10	1	150	4	1	010,0	75,71 €
K2107.10001422	siyah	31	14	47	33	10	1	150	4	2	010,0	75,71 €
